OPTIONAL EQUIPMENT

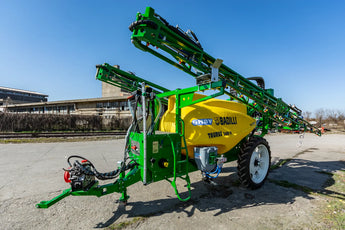

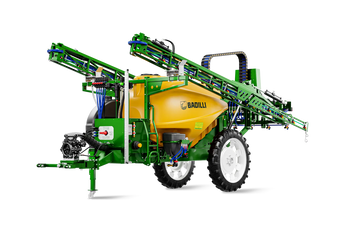

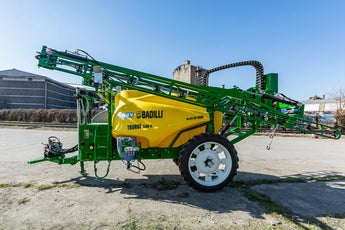

The TAURUS model is equipped with 24-meter booms that hydraulically open, hydraulically lift, and have hydraulic leveling (terrain copying) and air boom mitigation.
The standard equipment of the booms consists of triplex nozzle supports, spaced at 50 cm, which house Lechler plastic nozzles (ST 110-02, ST110-03, ST 110-04). As additional equipment, we offer a large selection of Lechler nozzles with and without a ceramic insert, nozzles designed for wind treatment ID, universal nozzles IDK, nozzles with a double jet IDK T, and the latest generation of asymmetric nozzles IDTA.

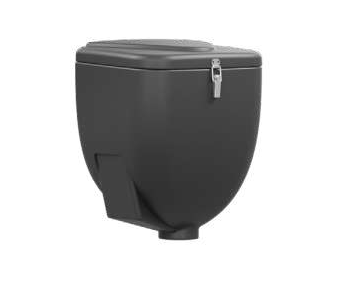

In addition to the main tank of 3600 liters, the sprayer is equipped as standard with an additional tank for rinsing the main tank as well as a container for preparing chemistry (mixer container) with a packaging rinser.

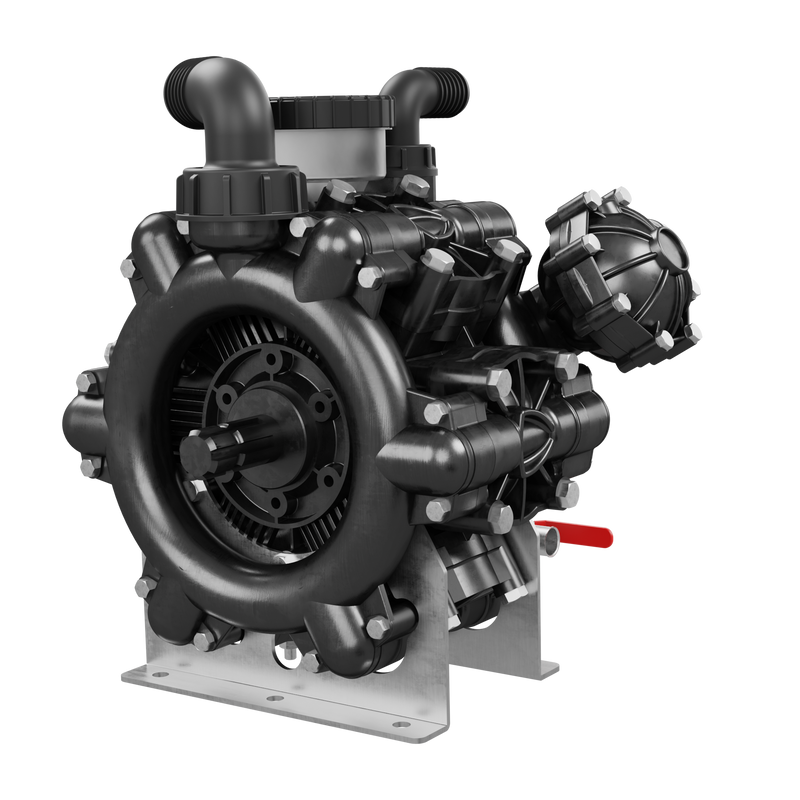

The sprayers are equipped with an ANNOVI REVERBERI pump with a maximum flow of up to 200 liters per minute.

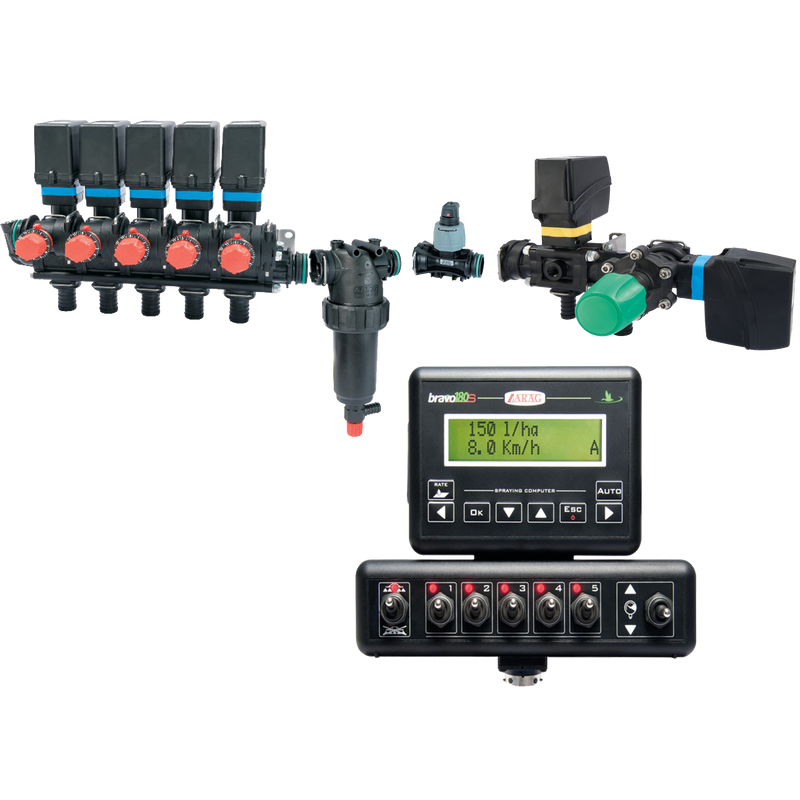

The sprayers are equipped as standard with automatic spray regulation with a BRAVO 180S computer.
The simplest and most affordable computer for sprayers and atomizers. By entering the norm, it takes control of the distributor and maintains the set norm. Automatic shut-off of spraying when the speed drops below a certain minimum. Visual and audible alarms. The displayed data are: rate, speed, pressure, flow, amount of water consumed, water level in the tank, sprayed area, duration of spraying, distance traveled. Comes complete with all cables and wheel mounted speed sensor.

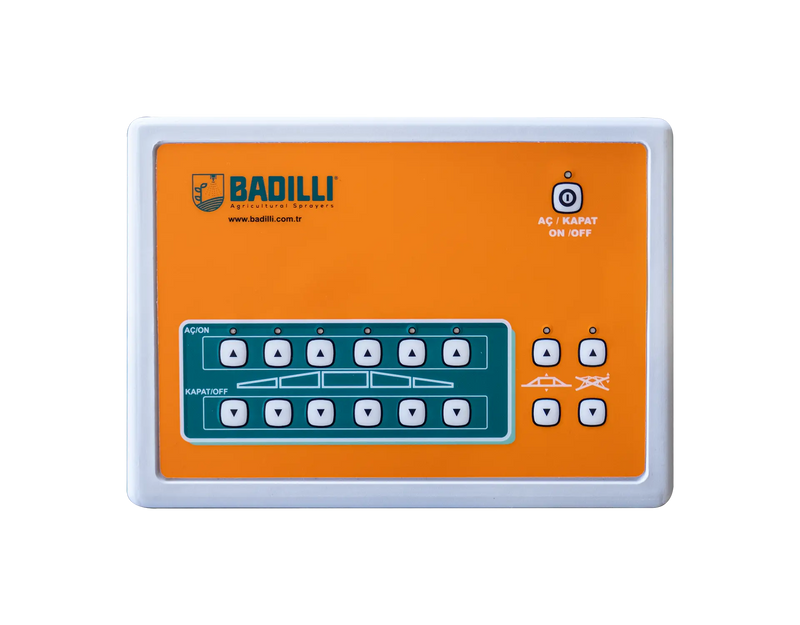

Also, as standard equipment is the electronic control of the hydraulic booms.
STANDARD EQUIPMENT
Pump ANNOVI REVERBERI
Maximum flow rate 200 liters/min
Regulator ARAG
with BRAVO 180 S computer
Electronic control of hydraulic booms

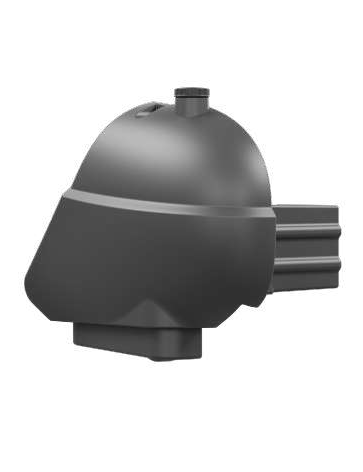

Rinsing and hand washing tank
400 litres
Mixer tank
35 litres
OPTIONAL EQUIPMENT
BRAVO 400S
State-of-the-art ARAG monitor. 5.7" display, 2 USB ports and SD card for loading and data transfer, 2 camera inputs, 2GB of internal memory. This monitor can be upgraded. It can be connected to an antenna and used as GPS navigation. It can be connected to a switch box and serve as a classic sprayer computer, and it can also be used for automatic section control via GPS where it turns the sections on or off if there is an overlap. This monitor can also be connected to an electric motor so it can to be used for automatic tractor steering
| MODEL | 3600 |
|---|---|
| Pump (max. flow 200 lit/min) | ANNOVI REVERBERI |
| Boom (m) | 24 |
| Height adjustment | Hydraulic |
| Boom opening | Hydraulic |
| Regulator | ARAG with BRAVO 180 S |
| Nozzles | Triplex |
| Weight (kg) | 1850 |
| Rinsing tank (400 lit) | STANDARD |
| Mixer tank | STANDARD |
